Steel Ladder Lattice Girder Beam

Short Description:

As a one of most professional scaffolding and formwork manufacturer in China, with more than 12 years manufacturing experience, The steel ladder Beam are one of our main products to supply foreign markets.

Steel ladder beam is very famous to be used for bridge construction.

Introducing our state-of-the-art Steel Ladder Lattice Girder Beam, a revolutionary solution designed to meet the demands of modern construction and engineering projects. Crafted with precision and durability in mind, this innovative beam combines strength, versatility, and lightweight design, making it an essential component for a wide range of applications.

For manufacturing, our own have very strict production principles, so we all products will engrave or stamp our brand. From raw materials select to all proceedure, then after inspection, our workers will pack them according to different requirements.

1. Our Brand: Huayou

2. Our Principle: Quality is life

3. Our goal: With high quality, with competitive cost.






  • Width: 300/400/450/500mm
  • Length: 3000/4000/5000/6000/8000mm
  • Surface Treatment: hot dip galv.
  • Raw Materials: Q235/Q355/EN39/EN10219
  • Proceedure: laser cutting then full welding
  • Product Detail

    Product Tags

    Description

    Steel Ladder Beam have two types: one is steel ladder girder beam, the other is steel ladder lattice structure.

    They have so many same characteristics, for example, they all use steel pipe to be raw materials and use laser machine to cut different length. then we will ask our mature welder to weld them by manual. All welding bead must not less than 6mm width, smooth and full.

    But the steel ladder girder beam just like straight single ladder that consist of two stringers and several rungs. Stringers size ususally diameter is 48.3mm, thickness 3.0mm, 3.2mm, 3.75mm or 4mm base on different customers requirements. The ladder width is core to core of pole base on requirements.

    Between the rungs distance is 300mm or other customized.

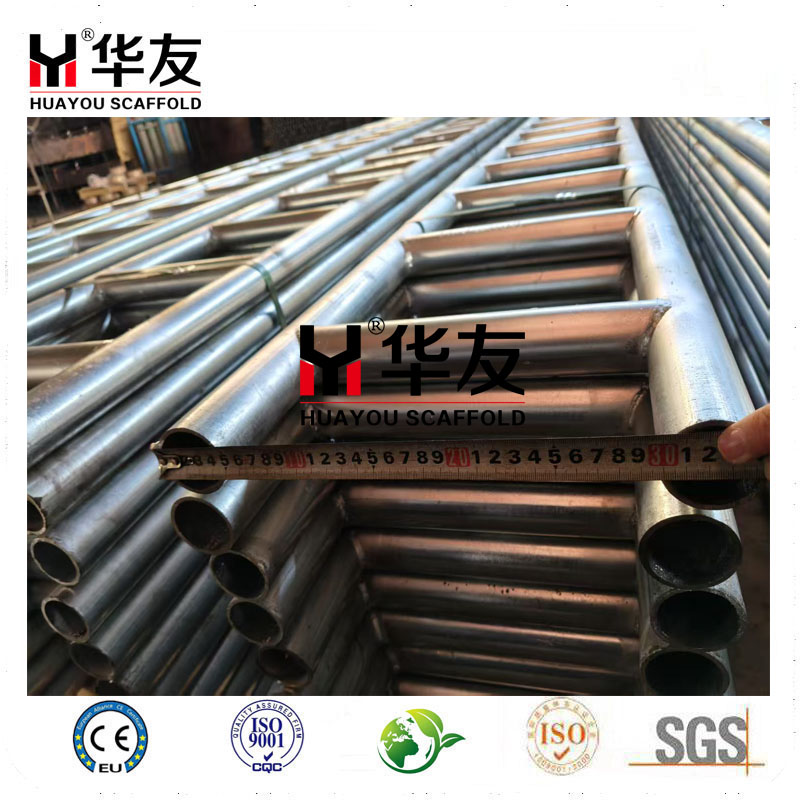

    Ladder beam-3

    The steel ladder lattice have a little complex with many different length elements. Stringers, diagonal brace and vertical braces. The diameter and thickness are almost same as steel ladder and also follow up different customers.

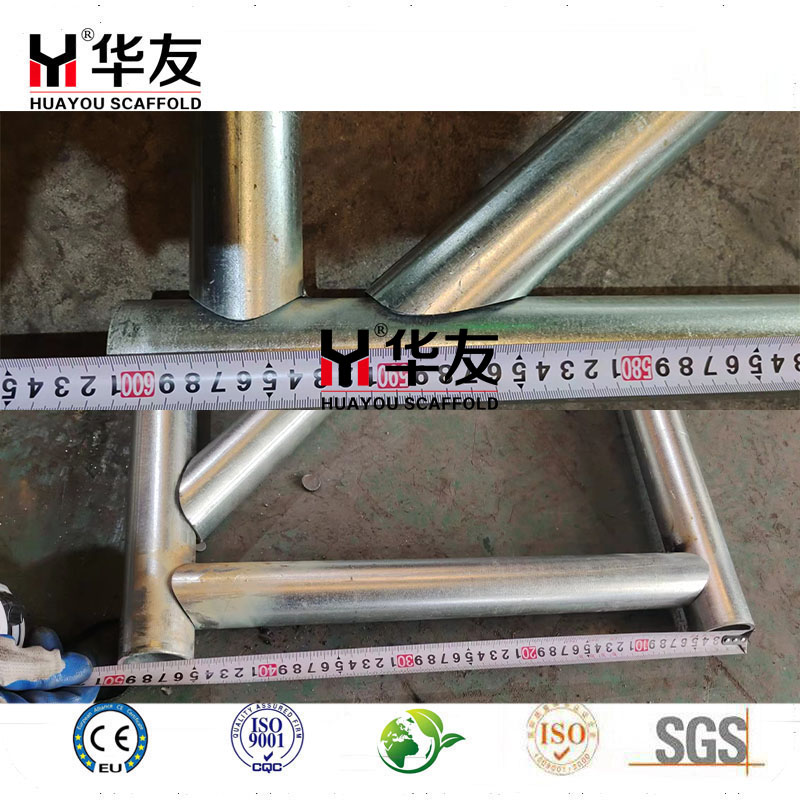

    lattice girder beam

    Specification Details

    Width(mm) Rung distance (mm) Diameter (mm) Thickness(mm) Length(m) surface
    300 280/300/350 48.3/30 3.0/3.2/3.75/4.0 2/3/4/5/6/8 Hot dip Galv./Painted
    400 280/300/350 48.3/30 3.0/3.2/3.75/4.0 2/3/4/5/6/8 Hot dip Galv./Painted
    450 280/300/350 48.3/30 3.0/3.2/3.75/4.0 2/3/4/5/6/8 Hot dip Galv./Painted
    500 280/300/350 48.3/30 3.0/3.2/3.75/4.0 2/3/4/5/6/8 Hot dip Galv./Painted

    Actually, all our products are manufactured according to customers requirements and drawing details. We have more than 20 pcs mature-working welders with more than 10 years working experience. Thus can guarantee all welding site are better than others. Laser machine cutting and mature welder are both can produce high quality products.

    Advantages

    The Steel Ladder Lattice Girder Beam features a unique lattice structure that enhances its load-bearing capacity while minimizing material usage. This design not only reduces the overall weight of the beam but also allows for greater flexibility in construction, making it ideal for both residential and commercial projects. Whether you are building a bridge, a high-rise building, or a complex industrial structure, our girder beam provides the reliability and performance you need.

    Constructed from high-quality steel, this girder beam is engineered to withstand harsh environmental conditions, ensuring longevity and stability. Its corrosion-resistant finish further enhances its durability, making it suitable for outdoor applications where exposure to the elements is a concern. The beam’s robust design also allows for easy installation, saving you time and labor costs on your project.

    In addition to its structural benefits, the Steel Ladder Lattice Girder Beam is also environmentally friendly. By utilizing advanced manufacturing techniques, we minimize waste and energy consumption, contributing to a more sustainable construction industry.

    With a variety of sizes and specifications available, our Steel Ladder Lattice Girder Beam can be customized to meet your specific project requirements. Trust in our commitment to quality and innovation, and elevate your construction projects with the unmatched performance of our Steel Ladder Lattice Girder Beam. Experience the perfect blend of strength, efficiency, and sustainability—choose our girder beam for your next project and build with confidence.
