Steel Euro Formwork

Short Description:

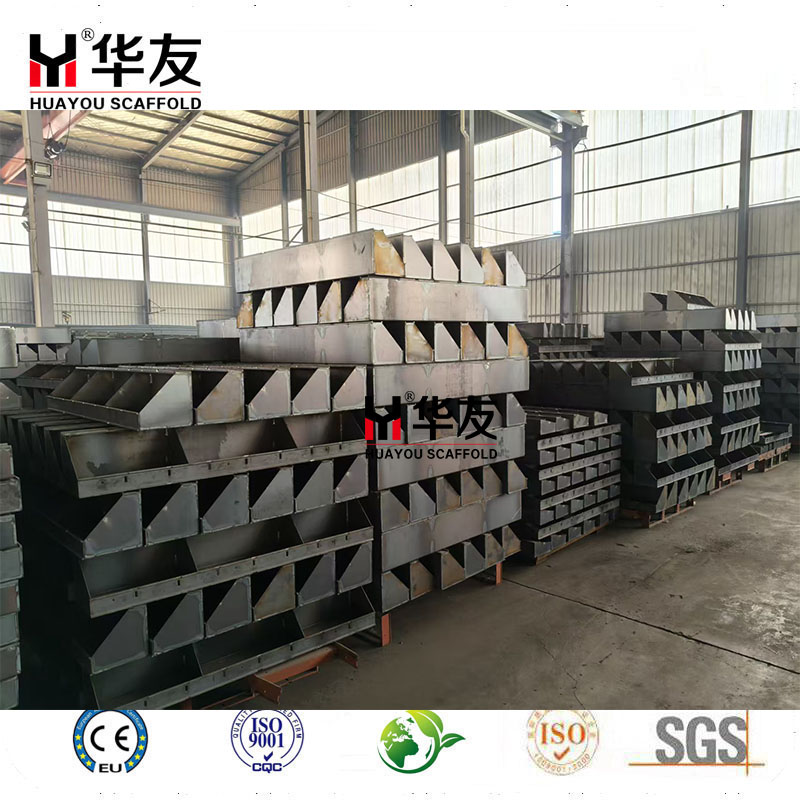

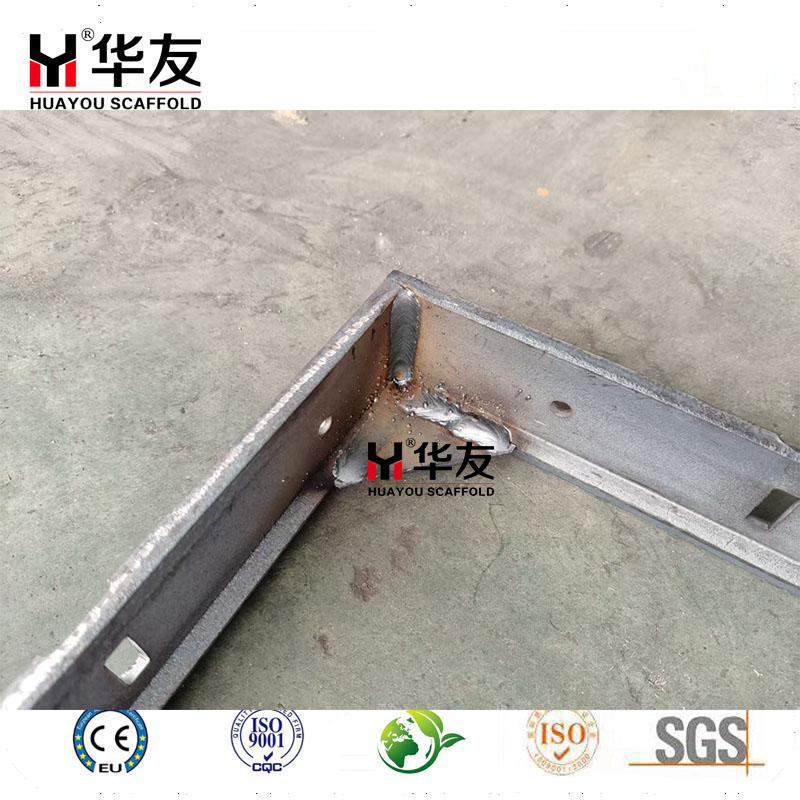

Steel Formwork are made by steel frame with plywood. and the steel frame have many components, for example, F bar, L bar, triagnle bar ect. The normal size are 600x1200mm, 500x1200mm, 400x1200mm, 300x1200mm 200x1200mm, and 600x1500mm, 500x1500mm, 400x1500mm, 300x1500mm, 200x1500mm etc.

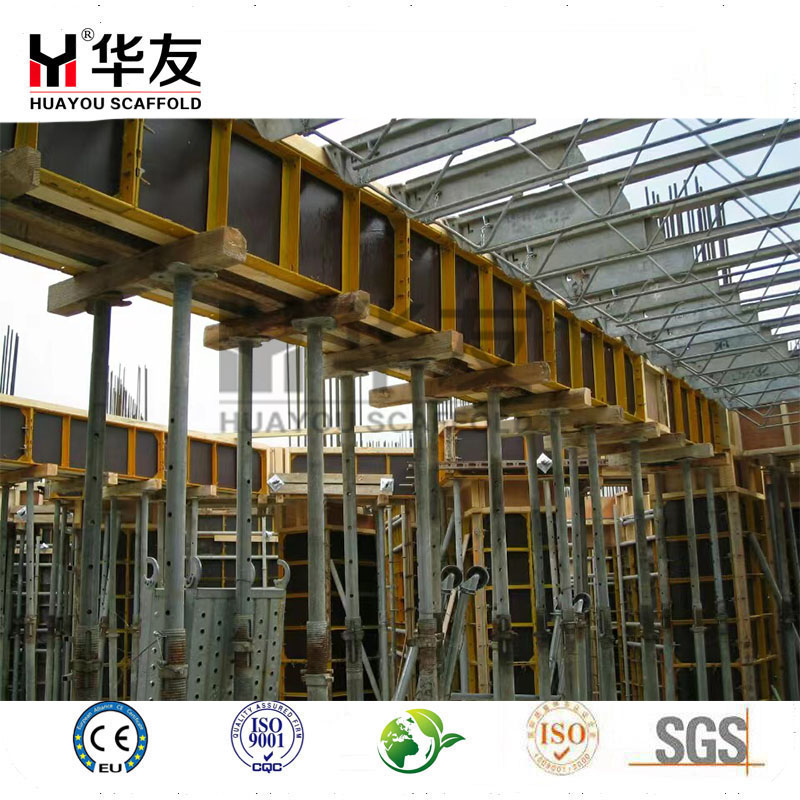

Steel Formwork usually be used as one whole system, not only formwork, also have in corner panel, outer corner angle, pipe and pipe support.

Raw materials: Q235/#45

Surface treatment: Painted/black

Send email to us

Product Detail

Product Tags

Company Introduction

Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which is the largest manufacturing base of steel and scaffolding products. Furthermore, it is a port city that easier to transport cargo to every port all over the world.

Formwork and Scaffolding are both important for constructions. To some extent, they also will use together for same construction site.

So, we spread our products range and try our best to meet our customers different demand and offer our professional service. We also can produce steel fromwork according to drawings details. Thus, can improve all our working efficiency and reduce time cost for our customers.

Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.

Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your

requirements and promote our mutually beneficial cooperation.

Steel Formwork Components

Name	Width (mm)		Length (mm)

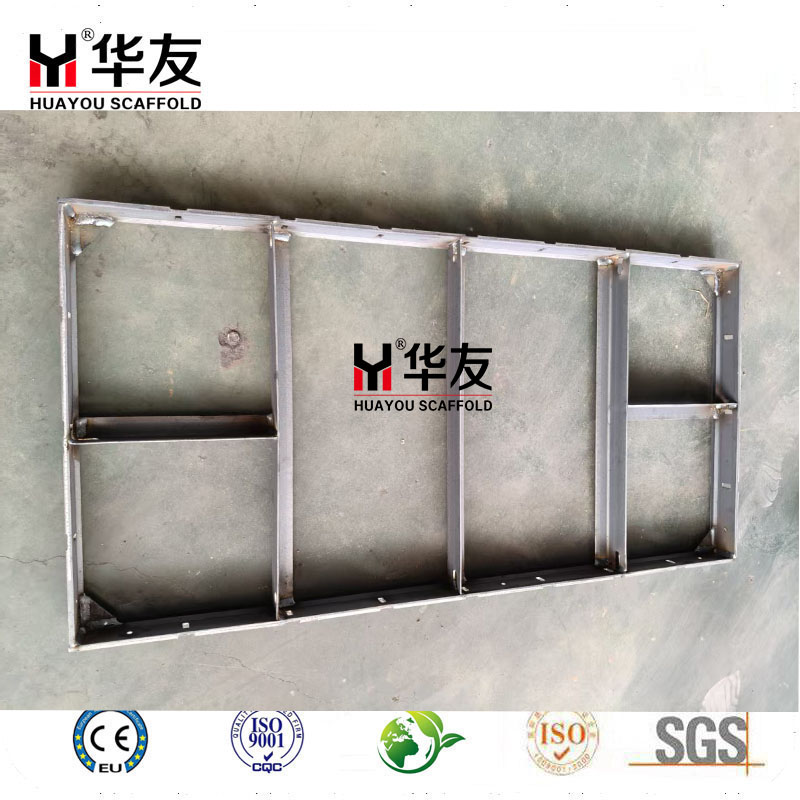

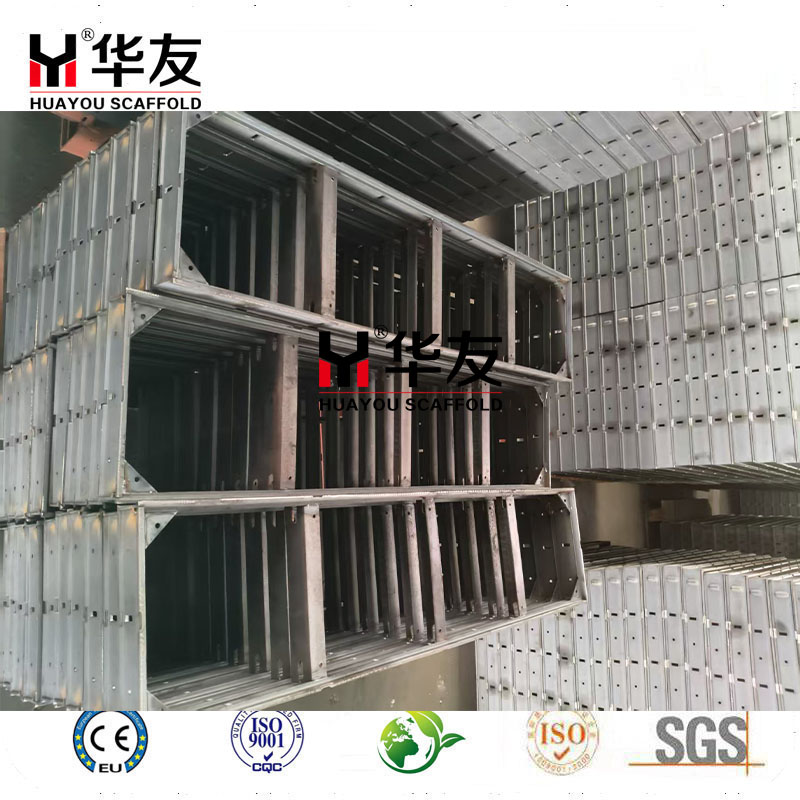

Steel Frame	600	550	1200	1500	1800
	500	450	1200	1500	1800
	400	350	1200	1500	1800
	300	250	1200	1500	1800
	200	150	1200	1500	1800
Name	Size (mm)		Length (mm)
In Corner Panel	100x100		900	1200	1500
Name	Size(mm)	Length (mm)
Outer Corner Angle	63.5x63.5x6	900	1200	1500	1800

Formwork Accessories

Name	Pic.	Size mm	Unit weight kg	Surface Treatment
Tie Rod		15/17mm	1.5kg/m	Black/Galv.
Wing nut		15/17mm	0.4	Electro-Galv.
Round nut		15/17mm	0.45	Electro-Galv.
Round nut		D16	0.5	Electro-Galv.
Hex nut		15/17mm	0.19	Black
Tie nut- Swivel Combination Plate nut		15/17mm		Electro-Galv.
Washer		100x100mm		Electro-Galv.
Formwork clamp-Wedge Lock Clamp			2.85	Electro-Galv.
Formwork clamp-Universal Lock Clamp		120mm	4.3	Electro-Galv.
Formwork Spring clamp		105x69mm	0.31	Electro-Galv./Painted
Flat Tie		18.5mmx150L		Self-finished
Flat Tie		18.5mmx200L		Self-finished
Flat Tie		18.5mmx300L		Self-finished
Flat Tie		18.5mmx600L		Self-finished
Wedge Pin		79mm	0.28	Black
Hook Small/Big				Painted silver
