Scaffolding Metal Plank 200/210/240/250mm
What is scaffold plank / steel plank
Steel plank we also call them as metal plank, steel board, steel deck, metal deck, walk board, walk platform.
Steel plank is a kind of scaffolding in the construction industry. The name of steel plank is based on the traditional scaffolding plank like wooden plank and bamboo plank. It is made by steel and generally referred as steel scaffold plank, steel building board, steel deck, galvanised plank, hot-dipped galvanised steel board, and is popularly used by the shipbuilding industry, the oil platform, the power industry and the construction industry.
The steel plank is punched with M18 bolt holes for connecting the planks to other planks and adjusting the width of the bottom of the platform. Between the steel plank and other steel plank, use a toe board with a height of 180mm and painted black and yellow to fix the toe board with screws in 3 holes on steel plank so that the steel plank can be fixedly connected to other steel plank. After the connection is completed, the materials for the fabrication platform should be strictly checked for acceptance, and the platform should be tested after it is made. The installation is completed and acceptance is qualified for listing before it is put into use.
Steel plank can used in all type of scaffolding system and construction by different types. this kind of metal plank usually used with tubular system. It is placed on the scaffolding system which set up by scaffolding pipes and scaffolding couplers, and metal plank used in building scaffolding, marine offshore engineering, especially the shipbuilding scaffolding and oil&gas project.
Product description
Scaffolding Steel plank have many name for different markets, for example steel board, metal plank, metal board, metal deck, walk board, walk platform etc. Until now, we almost can produce all different types and size base on customers requirements.
For Australian markets: 230x63mm, thickness from 1.4mm to 2.0mm.
For Southeast Asia markets, 210x45mm, 240x45mm, 300x50mm, 300x65mm.
For Indonesia markets, 250x40mm.
For Hongkong markets, 250x50mm.
For European markets, 320x76mm.
For Middle east markets, 225x38mm.
Can be said, if you have different drawings and details, we can produce what you want according to your requirements. And professional machine, mature skill worker, large scale warehouse and factory, can give you more choice. High quality, reasonable price, best delivery. Nobody can refuse.
The composition of steel plank

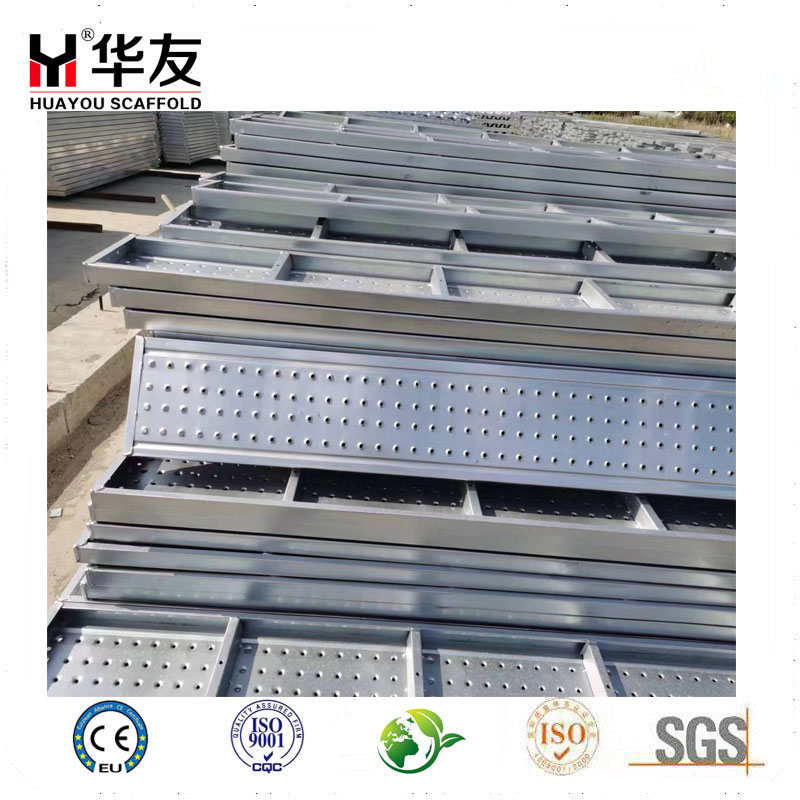

Steel plank consists of main plank, end cap and stiffener. The main plank punched with regular holes , then welded by two end cap at two sides and one stiffener by every 500mm. We can classified them by different sizes and also can by different type of stiffener, such as flat rib, box/square rib, v-rib.
Size as following
|
Southeast Asia Markets |
|||||
|
Item |
Width (mm) |
Height (mm) |
Thickness (mm) |
Length (m) |
Stiffener |
|
Metal Plank |
200 |
50 |
1.0-2.0mm |
0.5m-4.0m |
Flat/box/v-rib |
|
210 |
45 |
1.0-2.0mm |
0.5m-4.0m |
Flat/box/v-rib |
|
|
240 |
45 |
1.0-2.0mm |
0.5m-4.0m |
Flat/box/v-rib |
|
|
250 |
50/40 |
1.0-2.0mm |
0.5-4.0m |
Flat/box/v-rib |
|
|
300 |
50/65 |
1.0-2.0mm |
0.5-4.0m |
Flat/box/v-rib |
|
|
The Middle east Market |
|||||
|
Steel Board |
225 |
38 |
1.5-2.0mm |
0.5-4.0m |
box |
|
Australian Market For kwikstage |
|||||
| Steel Plank | 230 | 63.5 | 1.5-2.0mm | 0.7-2.4m | Flat |
| European Markets for Layher scaffolding | |||||
| Plank | 320 | 76 | 1.5-2.0mm | 0.5-4m | Flat |
Products Advantages
Our scaffolding steel planks are not only strong but also lightweight, allowing for easy handling and installation. The modular design enables quick assembly and disassembly, saving you valuable time on the job site. Additionally, the planks are treated to resist corrosion, ensuring longevity and reducing the need for frequent replacements.
Versatile and adaptable, our steel planks can be used in conjunction with various scaffolding systems, making them a perfect addition to your construction toolkit. Whether you’re a contractor, builder, or DIY enthusiast, our scaffolding steel planks provide the reliability and performance you need to get the job done safely and efficiently.
Invest in quality and safety with our Scaffolding Steel Plank. Elevate your worksite with a product that combines strength, stability, and ease of use. Experience the difference that superior scaffolding solutions can make in your projects. Order yours today and take the first step towards a safer, more efficient work environment!
