Ringlock Scaffolding Diagonal Brace
Ringlock diagonal brace usually made by scaffolding tube OD48.3mm and OD42mm, which is riveting with diagonal brace head. It connected the two rosettes of different horizontal line of two ringock standards to make a triangle structure, and generated the diagonal tensile stress makes the whole system more stable and firm.
All our ringlock scaffolding diagonal brace size is made base on ledger span and standard span. so, if we want to calculate diagonal brace length, we must know ledger and standard span we designed, that like trigonometric functions.

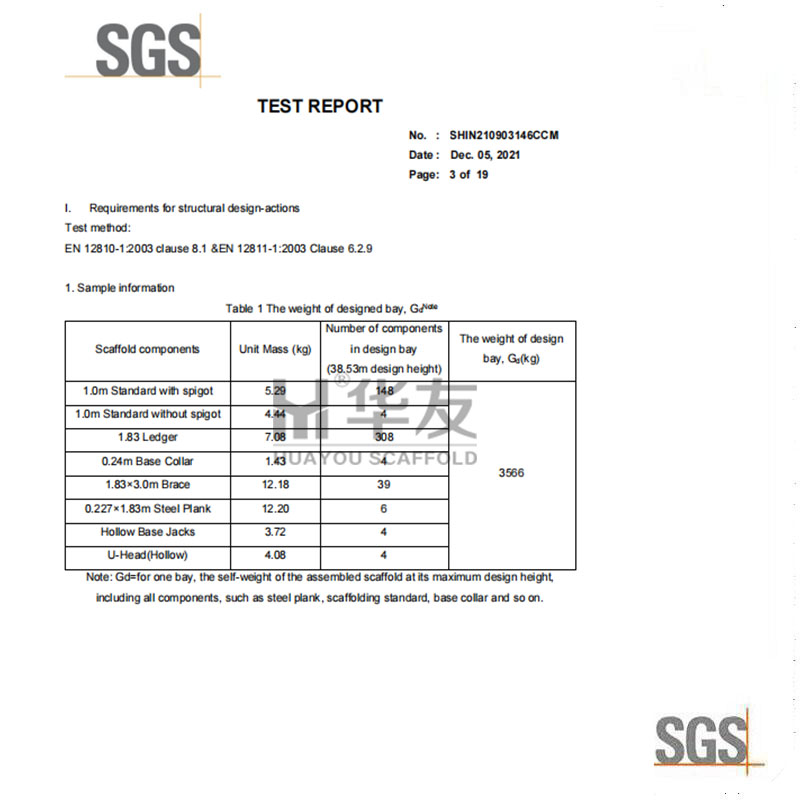

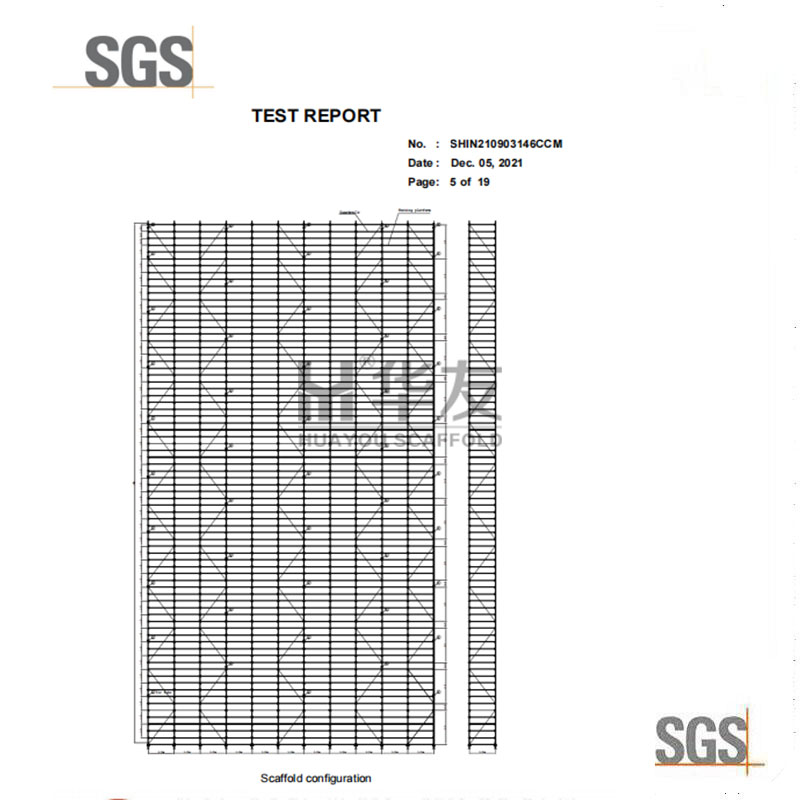

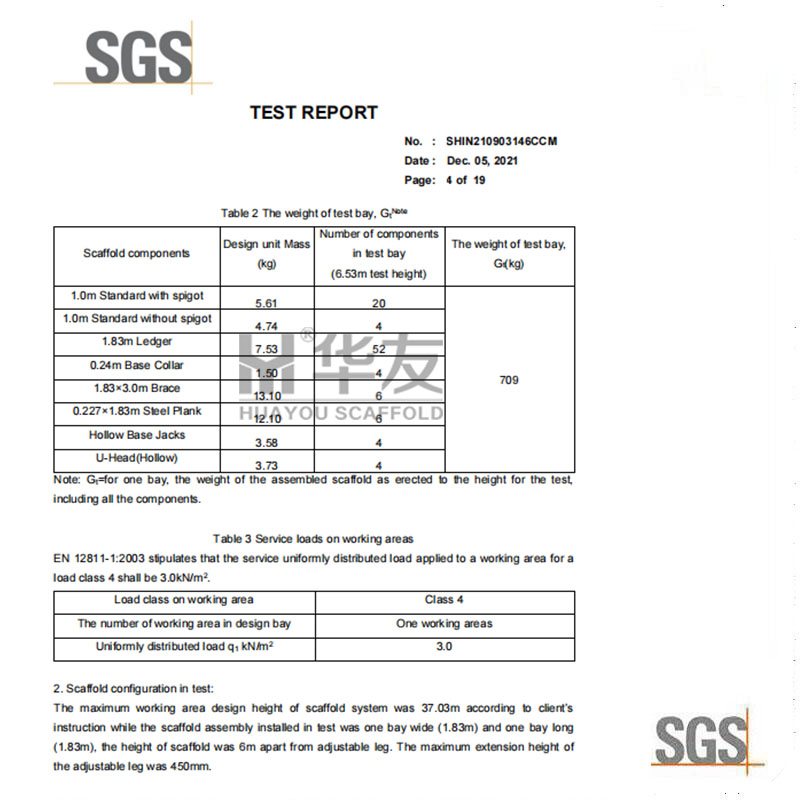

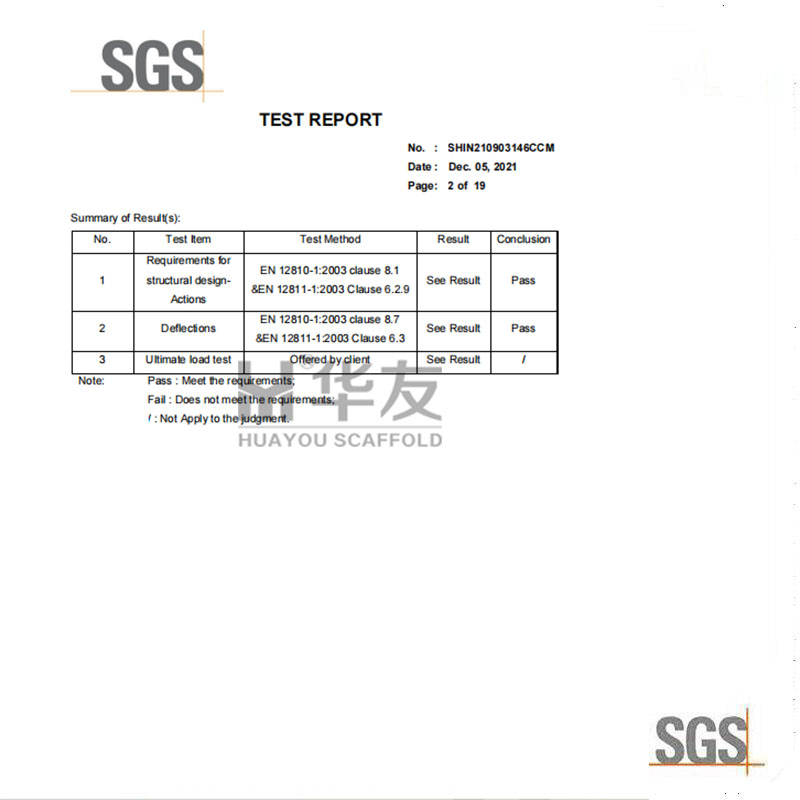

Our ringlock scaffolding passed the test report of EN12810&EN12811, BS1139 standard
Our Ringlock Scaffolding Products exported to more than 35 countries which spread all over the Southest Asia, Europe, Middle East , South America, Austrilia
Huayou brand’s ringlock scaffolding
Huayou ringlock scaffolding is strictly controlled by our QC department from materials test to shipment inspection. The quality is check carefully by our workers in every production procedure. With 10 years’ production and exportation , we are now can provide the scaffolding products to our clients by superior quality and competitive price. And also meet different request by every customer.
With ringlock scaffolding used by more and more builders and contractors, Huayou scaffolding not only upgrade the quality and also research & developed many new items so that provide one stop purchase for all clients.
Rinlgock Scaffolding is a safe and efficient scaffold system, They are widely used in the various construction of bridges, facade scaffolding, tunnels, stage support system, lighting towers, shipbuilding scaffolding, oil &gas engineering projects and safety climbing tower ladders.
Basic information
1.Brand: Huayou
2.Materials: Q355 pipe, Q235 pipe
3.Surface treatment: hot dipped galvanized (mostly), electro-galvanized, powder coated
4.Production procedure: material---cut by size---welding---surface treatment
5.Package: by bundle with steel strip or by pallet
6.MOQ: 10Ton
7.Delivery time: 20-30days depends on the quantity
Size as following
|
Item |
Length (mm) |
OD*THK (mm) |
|
Ringlock Diagonal Brace |
L0.9m * H1.5m |
48.3*3.2/3.0/2.75mm |
|
L1.2m * H1.5m |
48.3*3.2/3.0/2.75mm |
|
|
L1.8m *H1.5m |
48.3*3.2/3.0/2.75mm |
|
|
L1.8m *H2.0m |
48.3*3.2/3.0/2.75mm |
|
|
L2.1m *H1.5m |
48.3*3.2/3.0/2.75mm |
|
|
L2.4m *H2.0m |
48.3*3.2/3.0/2.75mm |
